Drv PDF

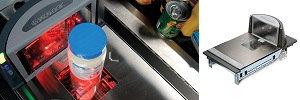

Magellan® 8300VS

High Performance In-Counter Scanner and Scanner/Scale

thumbnail The Magellan™ 8300 bi-optic scanner is a high performance 5-sided scanner for medium volume checkout environments. It offers great performance, high quality and reliability, and outstanding value. It improves operational efficiency by achieving outstanding first-pass read rates and represents the next step in value and checkout productivity from the Magellan family and Datalogic Scanning.
FirstStrike® advanced software decoding algorithms provide the industry’s best scanning speed and simultaneously improve first pass read rates of damaged, wrinkled, or poorly printed bar codes delivering improved operational efficiencies at the retail checkout



BarCode Readers

  • Quick Scan
  • 180Scanner Magellan2200
  • V-Price Checker





V-Tech Products

  • All in one POS.
  • Dibal Scales.
  • Receipt Printers
  • Scanners
  • Price Checker.
  • Label Printers.
V-Tech

  • Vtech-Software.
  • Vtech-Security.
  • Vtech-Hospitality
  • Vtech-Retail


Features

■Aggressive and ergonomic 360° 5-sided scanning for best in class scanning performance
■Renowned Magellan brand quality and reliability
■ All-Weighs Scale Platter with integrated Produce Lift Bar or Produce Rail™ (Optional
■ FirstStrike advanced decoding software delivers the best performance in reading poor quality labels
■Supports GS1 DataBar™ codes
■Flash memory for easy software upgrades in the field
■Multiple interface solution supports all popular host interfaces in every unit
■Powered auxiliary RS-232 port for easy integration of a handheld scanner
■Checkpoint Systems and Sensormatic EAS compatible (Optional)
■Flash memory for easy software upgrades in the field
■Value Added Features:
  • •Diagnostic Reporting - For improved preventative maintenance
  • •Host Download - Lowers Service Cost and Improves Operations labels

Specifications

Magellan 8300
Decoding Capability 1D/Linear Codes ◦Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes
Stacked Codes ◦GS1 DataBar Expanded Stacked
◦GS1 DataBar Stacked
◦GS1 DataBar Stacked Omnidirectional
Electrical AC Input 100-250 VAC, 50-60 Hz
Power Consumption Operating (Maximum 8 Watts),Operating (Nominal7 Watts), Sleep Mode(4 Watts)
Environmental
ESD Protection 25 kV
Humidity (Non-Condensing) 5 - 95%
Temperature ◦Operating (10 to 40 °C)Storage(-40 to 70 °C)
Interface Auxiliary Ports Powered RS-232,IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232,USB
Reading Performance Motor Speed 4500  rpm
Read Height 15.2 cm / 6.0 in
Read Rate 3900 lines/sec
Read Indicatores Beeper (Adjustable Tone),Good Read LED
Scan Lines 52
Scan Zone 360°
Side Read 5 Sides
Physical Characteristics Dimensions ◦Depth (Below Counter) 10.2 cm / 4.0 in
◦Height (Above Counter) 13.0 cm / 5.1 in
◦Model 8301 (Short, Scanner Only) 35.6 cm / 14.0 in
◦Model 8302 (Medium, Scanner Only) 40.1 cm / 15.8 in
◦Model 8303 (Long, Scanner Only) 50.8 cm / 20.0 in
 ◦Model 8304 (Medium, Scanner/Scale) 40.1 cm / 15.8 in
◦Model 8305 (Long, Scanner/Scale) 50.8 cm / 20.0 in ◦Width 29.2 cm / 11.5 in
Scale Capacities ◦Adjustments Required (Calibration Only)
◦Capacity (15.0 kg / 30.0 lb)
 ◦Maximum Static Weight (68.0 kg / 150.0 lb)
 ◦Minimum Increment (0.005 kg / 0.010 lb)
 ◦Vibration Immunity (4 Programmable Filter Set)
Safety and Regulatory Agency Approvals The product meets necessary safety and regulatory  approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
Environmental Compliance
  • Complies to China RoHS
  • Complies to EU RoHS
Laser Classification
  • Caution Laser Radiation - Do not stare into beam
  • EN 60825-1 Class 2
  • IEC 60825-1 Class 2
thumbnail Specifacations are subject to change without prior notice
