V-Shop

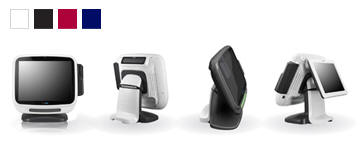

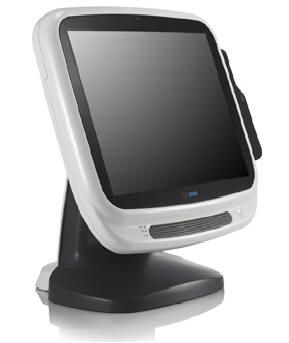

The High Performance POS System with a Flexible Design Suitable to anyShop

V-Shop is a wall mountable Panel POS system with advanced features and powerful functions, including an internal stereo and camera. The addition of a camera enables increased security against corruption with the ability to record all transactions during operation. AnyShop can also be selectively equipped with Intel Atom, Intel Celeron Mobile or Intel Core 2 Duo processor. Designed with simple maintenance in mind, AnyShop’s hard disk can be easily inserted or removed with one simple touch. Also, considerate I/O connection design allows device cables to be hidden inside the system base and therefore simplifies cable management. Its exclusive shape and unique selection of color enable the system to completely match with any range of commercial areas.

All in one POS

V-Tech Products

V-Tech

What's Special

	V-Shop Any Space Designed with user's requirement in mind, AnyShop provides a smart solution for any counter where space is premium. With its wall mounting fixture, AnyShop can be easily mounted in any location. The system will be an absolutely perfect solution for any daily and space saving required environment including hospitality, retail, entertainment, health care and other sectors
	Powerful cooling system The air came into the system to be completely discharged immediately after circulating CPU; the most heat generator and each effective system heat sink. Also the specialized duct system blocks any flow back heat to the system. With this smart cooling guarantee stable performance and long life span.
	Easy Maintenance High serviceability mechanical design for easy HDD maintenance. You need to release only one screw to reach HDD.

Specifications

		V-Shop_M	V-Shop_P	V-Shop_D5
CPU(Support)		Intel Celeron Mobile 1.5GHz	Intel Core 2 Duo processor	Intel Pineview-D D510
Chipset		Intel 91xGME	Intel 945GME	ICH8M
HDD		SATA 2.5inch (Default 160GB)
Memory		DDR2 SODIMM x 1slot(Default 1GB up to 2GB)	DDR2 SODIMM x 2slot(Default 1GB up to 4GB )	DDR2 SODIMM x 1slot(Default 1GB up to 2GB )
VGA		Intel 82915GM GMCH (Independent dual display)	Intel 82945GM GMCH (Independent dual display)	Intel Gen3.5+GFX Render Core
Display		15" TFT LCD with 5-wired resistive Touch Screen 1024 x 768 resolution
Internal I/O	USB	3 Ports (reserved for Touch controller, SCR EMV card, Camera, MSR controller)
	PS/2	1 Keyboard with pin header
	RS-232	COM 4 reserved for VFD
		COM 5 , 6 with 9pin header	COM 3 with 9pin header	COM 5 , 6 with 9pin header
	D-SUB	Reserved for 2nd display
	Extension	MINI PCI
	LVDS	Main display use
External I/O	Parallel	1 Port
	USB	Rear 2, Side 2
	PS/2	Mouse 1 / Keyboard 1
	RS-232	COM 1 ~ 3 with +5/12V power output on 9pin	COM 1 ~ 2 with +5/12V power output on 9pin	COM 1 ~ 2 with +5/12V power output on 9pin
	LAN	GbE LAN
	Audio	Each 1 Line-out/ Line-in/ Mic
Options	MSR	Comply with ISO 7811, Support 1, 2 , 3 track
	SCR	EMV level
	Camera	Camera
	Dallas	Dallas I-button reader
	VFD	VFD type customer display (20 x 2)
	2nd LCD	12.1" LCD : 1024 x 768 resolution
	DVR	DVR Card : 4channel support
	Wi-Fi	Mini PCI for wireless LAN
	VGA	Mini PCI for VGA card
Qualification		CE, FCC, KCC		CE, FCC, KCC, CCC
Power Supply		AC 110 or 220V (Max.230 watt)		INPUT: 100-240V~,50/60Hz 1.5AOUTPUT: DC 12V 5A
OS Support		Linux, Windows 2000/XP/XPE, WEPOS, POS Ready, Windows 7

* Specifications are subject to change without prior notice
