Citizen CT-801 Receipt Printer
The Reliable and Speedy High-Performance Mini Printer
The first in a new line of revolutionary “Intelligent” printers, featuring the industry’s first POS printer with a back lit graphic LCD display that communicates with you. It is ideal for a variety of applications from retailers, end users, resellers and software developers in any location or environment, the unit has increased functionality that opens doors to the universe. Out of Paper? The two-line LCD display alerts you: "Paper end" "Please change paper." Alternatively, if the front cover is open "F cover open" "Please close front cover." There is an “apps” provided to customize, change or edit the display message on LCD. “Paper near end" "Call 123-456-7890 to reorder”
Taking you straight to the cutting edge of technology, this printer moves at a previously unseen velocity of 300mm per second, providing the fastest printing results for customers. In addition, the CT-S801 can send the printer status back, has an USB-Hub interface to hook up another input device such as a signature or PIN pad or biometric scanner (finger print reader) to CT-S801 printer, not to the PC. With an internal memory large enough to store logos, footers, custom fonts, keywords and downloading custom applications, this unit has it all. The CT-S801 can be desktop or wall-mounted and comes standard with USB interface, RS-232 serial or Centronics parallel interfaces. Printer drivers included are: Windows XP (32 and 64 bit), Windows Vista (32 and 64 bit), Java POS, OPOS and CUPS.
Receipt Printers
V-Tech Products
V-Tech
Features
|
- ■truly, unique printer: the industry’s first POS printer with a backlit graphic LCD display communicates with you.
- ■The world’s fastest, most reliable, easiest to configure and customize POS printer.
- ■300mm/sec providing the fastest printing results for customers.
- Longer cutter life delivers lower maintenance costs
- ■Greater reliability delivers longer life & lower maintenance costs
- ■Wider paper width allows printing of additional information & larger fonts
- ■USB standard meets market standardization requirements
- ■2D/PDF417 bar code support allows wider applications
- ■Built in buzzer provides audible alert without adding extra cost devices
- ■Built in power supply eliminates unsightly “brick” and frees up space
- ■Printer drivers included are: Windows XP (32 and 64 bit), Windows Vista (32 and 64 bit), Java POS, OPOS and CUPS.
- ■Can be desktop or wall mounted.
- ■Three year warranty
- ■Same footprint as TM-T88.
LCD Display
- LCD indicates the printer's status, button names, types of errors, and messages.
- Installation of vertical or wall-mount, memory switch settings invert the LCD icons.
- LCD and LED auto power OFF function.
- Easy maintenace of printer head and cutter with using of LCD and LED messages.
 |
 |
|
Green color LCD for
"normal operation" |
Red color LCD for "error happened" |
|
|
|
|
Operation panel |
LCD display |
|
|
LCD display (normal and inverted images) |
LED
- Green: Power is on.
- Red: Operates in special modes or in errors.
- Orange: Paper is low (paper near-end) or print head is hot.
Buttons and icon
- FEED button: To feed the paper.
- MENU button: Press and hold this button to access the momory switch setting mode.
- PAPER LOW icon: It dappears when the paper roll is near its end.
- LOCK icon: It displays when the MENU button is inoperative.
Specifications
| Printing method | Line thermal dot print (direct thermal) |
| Resolution | 8 dots/mm (horizontal & vertical), 203 DPI |
| Printing Speed | 300 mm/s ( 2400 dot-lines/s ) |
| Print Width | 80 / 72 / 54.5 / 54 mm |
| Number of columns | 53 / 48 / 36
/ 35 columns - font A (default), 71 / 64 / 48 / 46 columns - font B, 80 / 72 / 54 / 52 columns - font C, depending of memory switch |
| Character dimensions | 1.50mm x
3.00mm - font A (12x24 dots) 1.13mm x 3.00mm - font B (9x24 dots) 1.00mm x 2.00mm - font C (8x16 dots) |
| Characters types |
Alphanumeric,international, PC437, Katakana, PC850, PC852, PC857, PC858, PC860, PC863, PC864, PC865, PC866, WPC1252, Thai code 18 |
| User memory | 256 K bytes
(capable of registering user defined characters and logos) |
| Bar code types | UPC-A/E,
JAN(EAN)8/13, ITF, Code 39, Code 128, CODABAR, Code93, PDF-417, QR Code |
| Line pitch | 4.23 mm ( 1/6 inch, min 1/203 inch ) |
| Paper roll | Direct
thermal paper roll, max.80 mm OD, 0.065 to 0.150 mm thickness |
| Cutter type | Guillotine, partial or full cut, 20 cycles/minute |

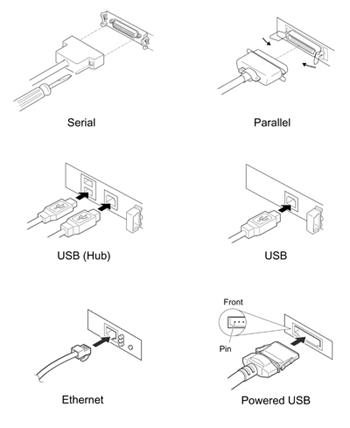

| Interface | Serial
(RS-232C), Parallel (IEEE1284), Full speed USB 1.1, Powered USB (DC24V, 2.3A), Ethernet (10BaseT/100BaseT) |
| Input buffer | 4K |
| Cash drawer | 2 cash drawers are supported |
| Power supply | AC100-240V, 50-60Hz, 2.1A |
| Power consumption | 150VA |
| Weight | Approx. 2.1 kg |
| Outer dimensions | 145 (W) x 193 (D) x 148 (H) mm |
| Operating environment | 5 to 45 C, 10 to 90%RH, no condensation |
| Storage temperature | from -20 to 60 C, 10 to 90%RH, no condensation |
| Reliability | Print head
life = 200 million pulses or 150 km, Cutter life = 2 million cuts |
| Installation | Horizontal, vertical or wall-mounted |
| Safety standards | VCCI, UL, FCC, CE, TUV-GS, CCC |
| Available drivers | Windows
(32bit/64bit): 2000 / XP / Vista, OPOS, JavaPOS, Linux CUPS |
|
